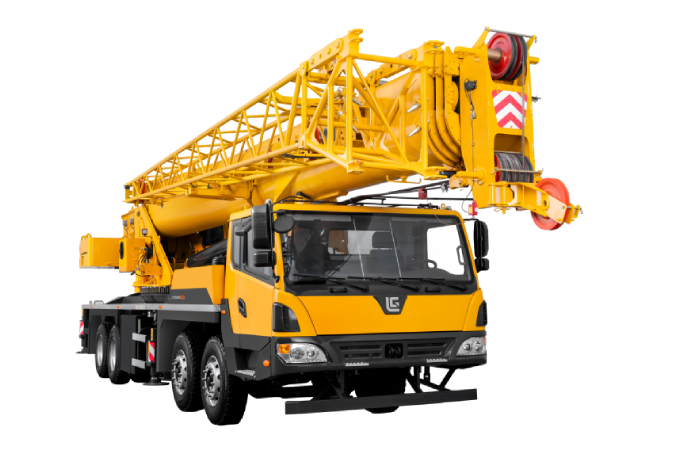

With the widest operating range and most optimal lifting performance in the industry, the TC600C5 reaches new heights.



Class-leading lifting performance

With a maximum payload of 55-tons the TC600C5 delivers class-leading performance. Its five-section U-shaped boom, advanced telescopic hydraulics and superior stability from its 7.5m outriggers and 3.3-ton counterweight, combine to deliver 5-10% greater lifting performance than comparable cranes.



Power without compromise

Powered by a super-efficient 340hp Cummins ISLe series Tier III engine, and with a maximum travel speed of 85km/h, getting to work is quick and easy. Thanks to its fast, 9-speed gearbox and double reduction, large ratio range axles, the TC600C5 can enjoy both fast travelling and low gradeability speeds so there’s no need to compromise.  Thanks to LiuGong’s advanced hydraulics, elevating the boom takes just 40 seconds, whilst telescoping it can be completed in only 100 seconds. For speed, power, and class-leading performance the TC600C5 is in a class of its own.



Comfort and safety

With a surprisingly spacious cab benefitting from ergonomic controls and excellent all-round visibility, including strategically positioned mirrors and a rear-view camera, the operator can work safely and comfortably.

SPECIFICATIONS
TC600C5
Crane Capacity 60t at 3 meters working range
Overall Length 14,100 mm
Overall Width 2,800 mm
Overall Height 3,730 mm
Dead Weigth in Travel Mode 42,200 kg
Travel
Min. Turning Radius 12 m
Max. Gradeability 46%
Engine
Engine Model ISLe 340 30
Power Output 250 kW (340 hp) @ 2,200 rpm
Working Specifications
Max. Rated Lifting Torque of Base Boom 2,033 kNm
Max. Rated Lifting Torque of Fully-extended Boom 1,192 kNm
Boom Full Extended Length 45 m
Base Boom Length 11.7 m
Fully-extended Boom + Jib Length 61 m
Max. Single Rope Lifting Speed of Main Winch (no Load) 130 s
